How to Fix 3D Models for 3D Printing

Author: Arndt von Koenigsmarck · Last reviewed August 2026

Downloaded models rarely arrive ready to print. They are often too low in resolution, built from several loose pieces, or full of tiny gaps that stop the printer from understanding where the solid material is. Learning how to fix 3D models for 3D printing is what turns a promising download into a clean, reliable print. This guide walks through the most common problems and how to solve them in Cinema 4D. It is part of our larger guide on Cinema 4D for 3D printing.

When models are offered specifically for printing, they usually come as STL files. STL is a purely polygonal format, so it carries no parametric information and gives you no options for improving quality or polygon density on import. A low-resolution model therefore has to be refined manually, for example in Cinema 4D, to smooth out coarse curves before printing.

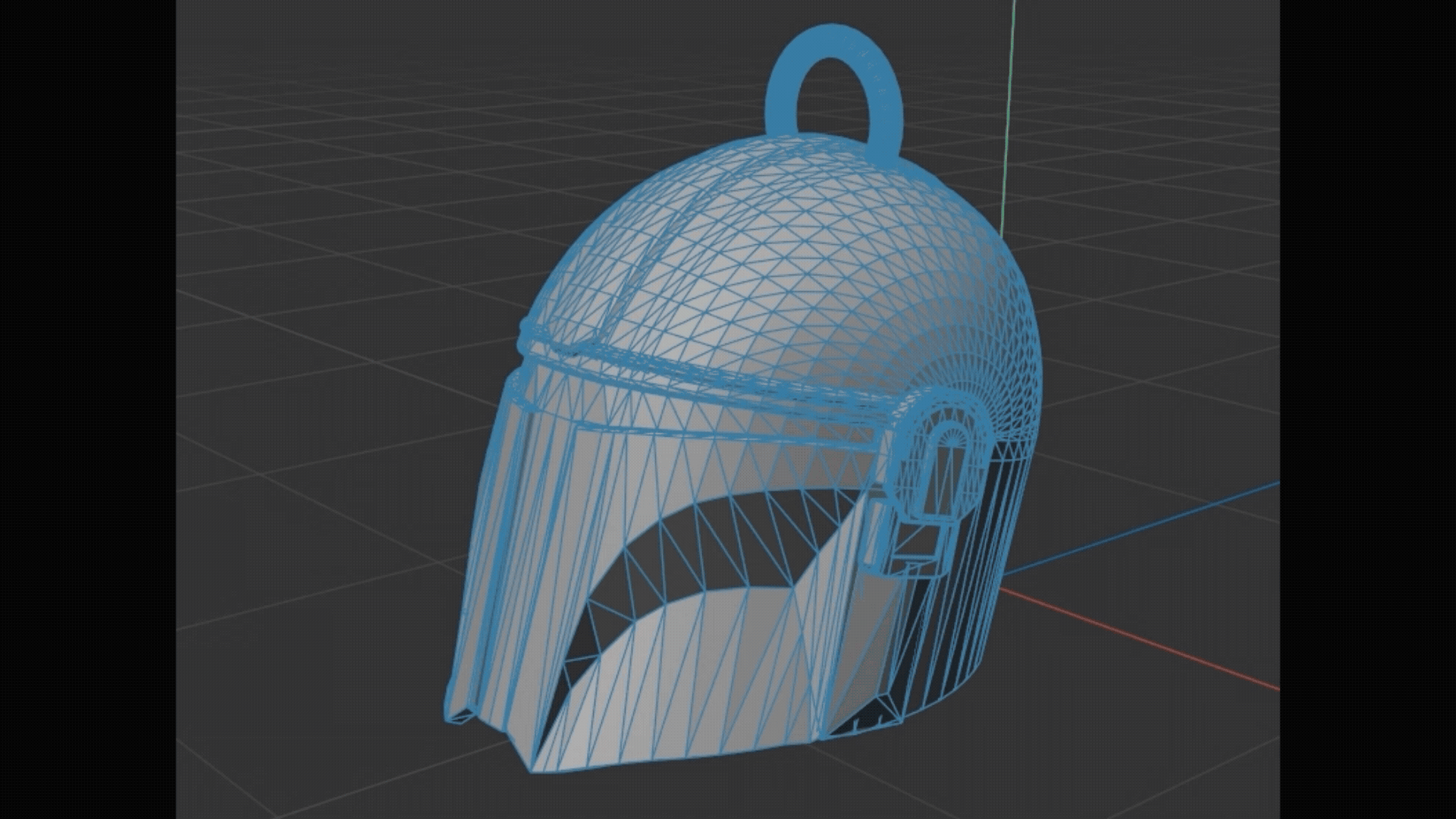

There is a second surprise hidden in many imported files. A model that shows up as a single object in the Object Manager is often assembled from several separate sub-groups. You can check this quickly by switching to Polygon Mode and double-clicking the model, which selects every polygon directly connected to the one you clicked. If only part of the model highlights, you know it is built from multiple pieces.

Once you know a model is made of several self-contained shapes, you can break it apart cleanly. The Tools > Convert > Polygon Islands to Objects command detects these closed shapes automatically and creates a separate object for each one in the Object Manager. From there you can move, replace or simply delete individual components, for example to swap a coarse part for a higher-quality one.

Building up a model works the same way in reverse, and here 3D printing is forgiving. It does not matter to the slicer whether shapes inside the object intersect or overlap, because the slicer only reads the outer, visible surface. That means you can extend a model freely by adding basic shapes or separately modeled parts, without worrying about clean internal geometry.

Once the combined shape looks right, though, the individual pieces should be merged into a single model. Select all of them in the Object Manager (click the first, then Ctrl-click the rest) and run Tools > Convert > Connect Objects. This creates one new object that contains all the previously selected pieces.

Overlaps are harmless, but gaps and open edges are not. They prevent a mesh from being recognized as closed, which is what people mean by a "watertight mesh." A watertight model is one the slicer can read as a solid volume with a clear inside and outside, and it is the single most important requirement for a clean print.

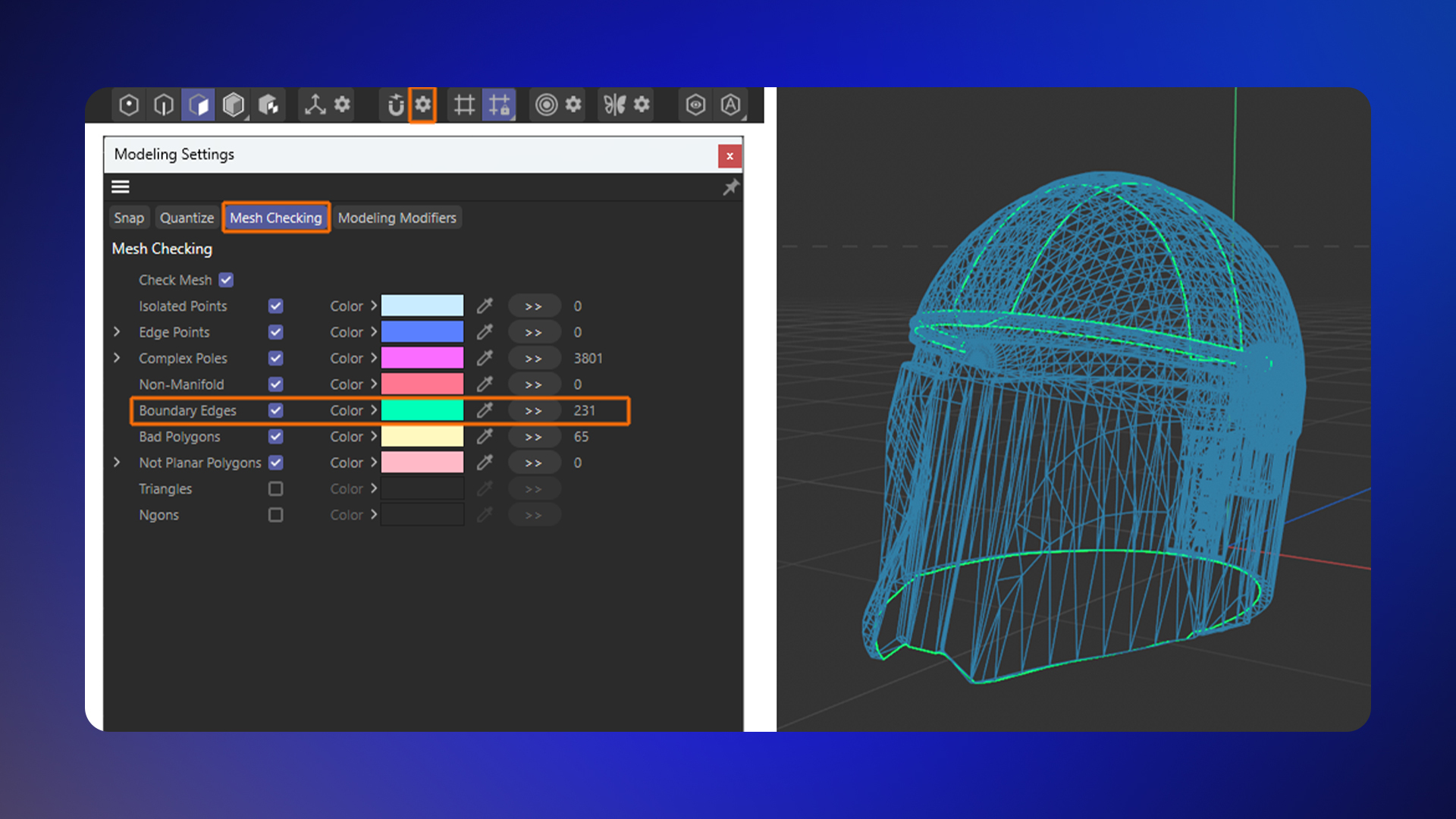

Cinema 4D can find these problem areas for you. Click the gear icon next to the snapping function in the top icon bar, then switch to the Mesh Checking settings in the dialog that appears. Enable Check Mesh and, most importantly, select the Boundary Edges option from the list. The number of open edges on the selected object, meaning edges that are not fully enclosed by polygons, is shown to the right of that line, and the problem edges are highlighted directly on the model in green by default.

Once you know where the holes are, Cinema 4D gives you several tools to close them, all found in the Mesh menu.

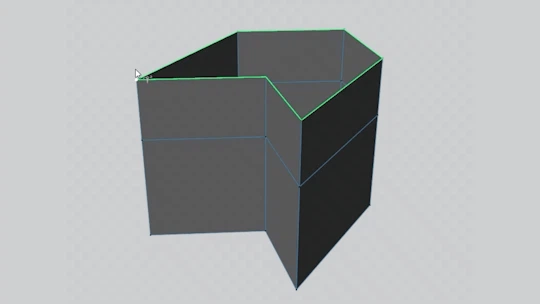

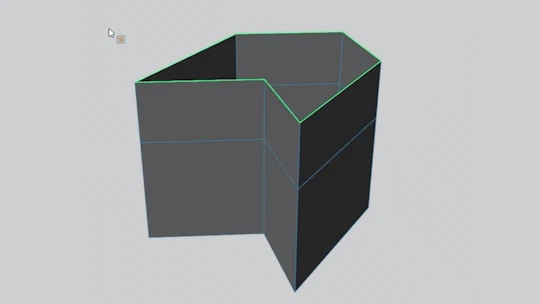

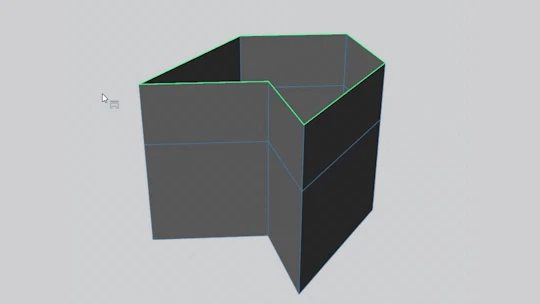

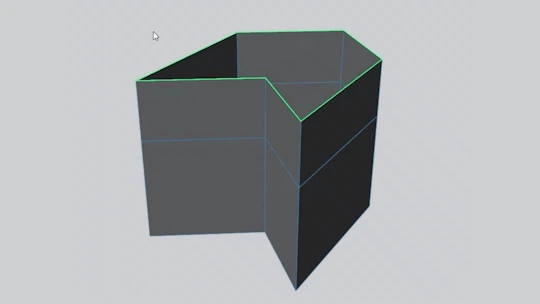

The Stitch & Sew tool lets you magnetically snap individual points together and merge them into one. The Bridge tool creates new faces between connected edges. The Polygon Pen works similarly but also lets you place individual triangular faces between points. And when an opening is enclosed by a continuous edge loop, the Close Polygon Hole tool seals it with a single click.

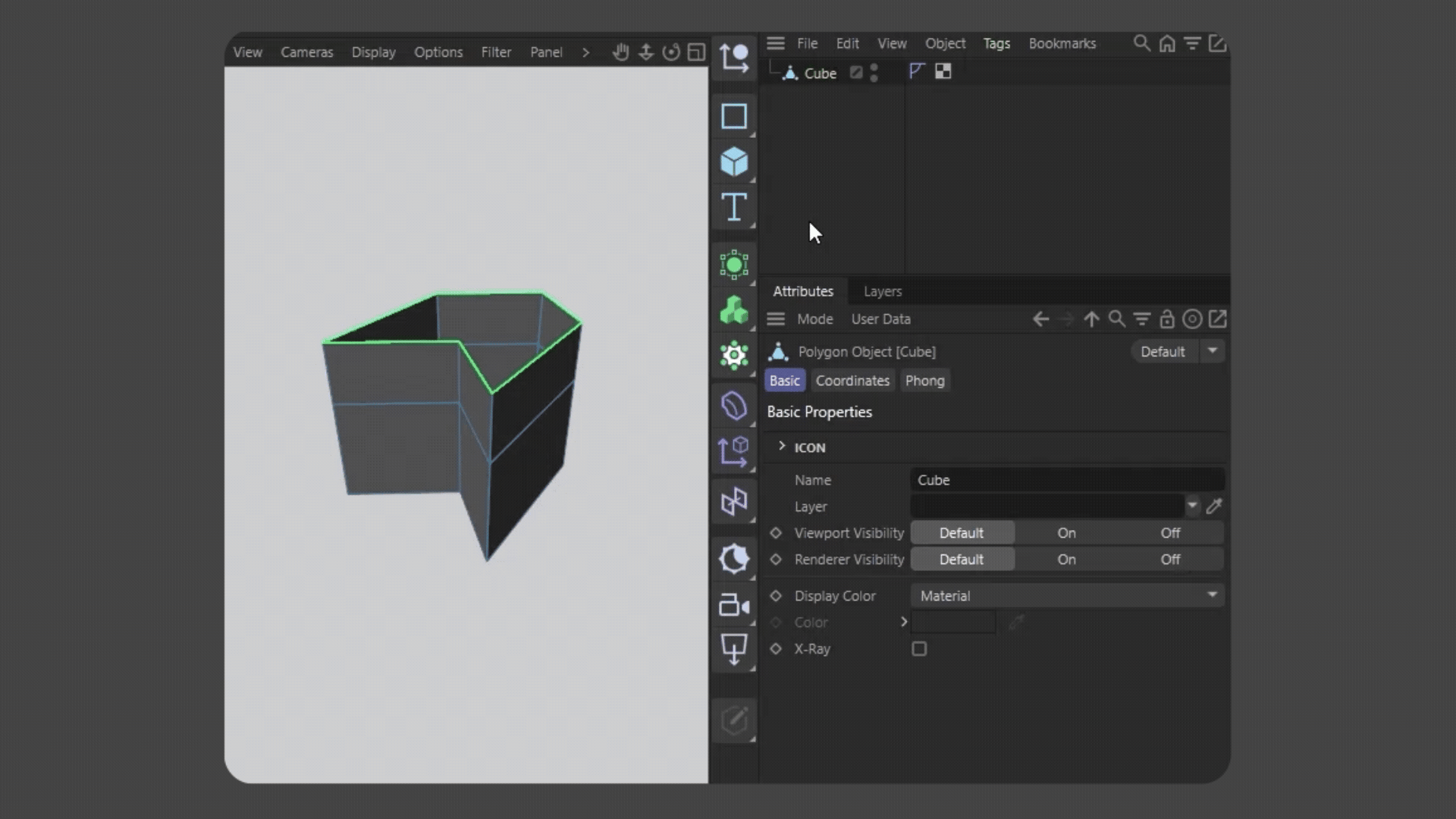

Sometimes the cleanest fix is not to close a hole but to give the whole object a wall thickness. Assigning an open mesh to a Thicken Generator turns a single-layer shell into a solid-walled object interactively, which resolves the open-edge problem across the entire model at once.

It is worth repeating, because it saves a lot of unnecessary cleanup. Intersecting and overlapping shapes inside a model are fine for printing, since the slicer ignores everything except the outer surface. Spend your repair effort where it counts, which is on open edges, gaps and non-watertight areas, rather than on internal overlaps that will never affect the print.

Next in the workflow: if your fixed model is bigger than your printer, see how to split large 3D models for printing.
